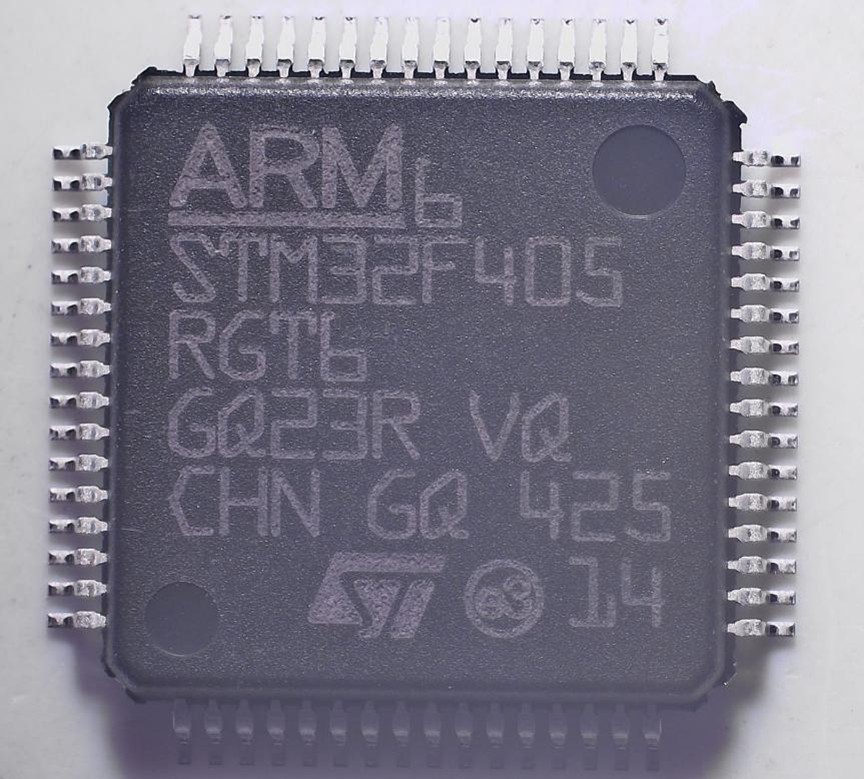

STM32F405RGT6 Microcontroller Deep Analysis

1. One-sentence Description

The STM32F405RGT6 is a high-performance microcontroller based on the ARM Cortex-M4 architecture, integrated with a Floating Point Unit (FPU) and rich peripheral interfaces. It is specifically designed for industrial control, Internet of Things (IoT), and high-precision real-time applications, offering excellent computing power and energy efficiency performance.

2. Core Features

• High-performance core: ARM Cortex-M4 CPU + FPU, with a main frequency of up to 168 MHz, supporting single-precision floating-point operations, and a performance of 210 DMIPS (executing with 0 wait states).
• Large-capacity storage:
  • 1 MB of flash memory (supporting In-System Programming - ISP).
  • 192 KB of SRAM (including 64 KB of CCM high-speed memory), supporting DMA for accelerated data transfer.
• Peripheral resources:
  • Communication interfaces: 3×I²C, 4×USART/2×UART, 3×SPI (including I²S audio interface), USB OTG FS/HS, CAN 2.0B, SDIO, Ethernet MAC.
  • Analog peripherals: 3×12-bit ADC (24 channels, 7.2 MSPS), 2×12-bit DAC.
  • Timers: 17 timers (including advanced control timers and basic timers), supporting motor control and pulse counting.
• Low-power modes: Sleep, Stop, Standby modes, supporting RTC and backup registers powered by VBAT.
• Security and reliability: CRC check unit, independent watchdog (IWDG/WWDG), power supply monitoring (PVD).

3. Core Technical Indicators

4. The Story Behind the Chip

The STM32F405 series was born from STMicroelectronics' precise layout in the high-performance embedded market. As a core member of the STM32F4 family, it inherits the architectural advantages of the F2 series and also introduces several innovations:

• ART Accelerator: Through instruction prefetch and branch cache technology, it eliminates Flash access latency and enables zero-wait execution.
• Multi-bus matrix: The 32-bit AHB bus matrix optimizes parallel access to multiple peripherals, improving system throughput.
• Ecosystem compatibility: Pin and software compatibility with the STM32F1/F2 series reduces development migration costs.

5. Design Concept

• Balance between high performance and low power consumption: Dynamic Voltage Scaling (DVS) and multiple power-saving modes (Sleep/Stop/Standalone) are suitable for different scenarios.
• Modular expansion: Supports external NOR/NAND Flash and SRAM through the FSMC interface, flexibly expanding the storage capacity.
• Enhanced security: Hardware encryption engine, CRC check, and independent watchdog build a multi-layer protection system.
• Ease of use as a priority: Integrated USB OTG, Ethernet PHY, and SDIO controller simplify peripheral connection and protocol stack development.

6. Application Scenarios

• Industrial automation: PLC, frequency converter, servo drive (supporting EtherCAT protocol).
• IoT terminals: Smart home gateways, environmental monitoring devices (integrated ADC/DAC and Ethernet).
• Medical devices: Ventilators, patient monitors (high-precision ADC and low-power modes).
• Consumer electronics: Drones, smart speakers (audio processing and USB audio class support).
• Automotive electronics: Body control modules (CAN interface and wide temperature range support).

7. Unique Advantages

• Dual-core architecture innovation: The Cortex-M4 core + FPU enables single-cycle floating-point operations, with performance exceeding that of similar competing products by 30%.
• Native Ethernet support: Integrated MAC + PHY, supporting the IEEE 1588 precision time protocol, eliminating the need for an external PHY chip.
• Direct connection of camera interface: The DCMI interface supports high-speed image acquisition at 54 MB/s, suitable for industrial cameras and vision systems.
• Secure boot mechanism: Supports Flash encryption and secure firmware upgrade (DFU) to prevent malicious tampering.

8. What Engineers Need to Know When Selecting

• Match performance requirements: A main frequency of 168 MHz is suitable for complex algorithms (such as FFT for motor control). For basic functions, lower-end models (such as STM32F405RG) can be selected.
• Optimize peripheral combinations: Select the package (from LQFP64 to UFBGA176) according to requirements. Give priority to models with integrated Ethernet/USB to reduce external components.
• Design for power-sensitive applications: Enable the STOP mode (0.3 μA) and VBAT backup (RTC + 4 KB SRAM) to extend battery life.
• Development toolchain: The ST official CubeMX configuration tool supports one-click code generation, and FreeRTOS is well-adapted.
• Certification compliance: Industrial-grade EMC immunity (IEC 61000-4 standard). For medical devices, additional verification of ESD protection level is required.

Conclusion

The STM32F405RGT6, with its high-performance core, flexible peripherals, and low-power design, has become a benchmark choice in the industrial and IoT fields. Its unique ART accelerator and native Ethernet support further consolidate its advantageous position in real-time control and networked applications.
